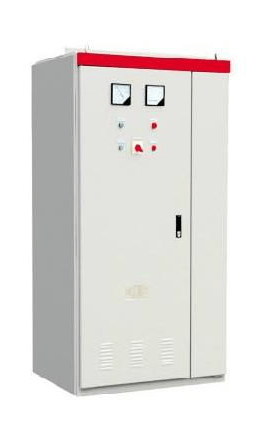

Liquid Resistance Starter
ZDQ series Tag Nrho Tsis Siv Neeg Ua Kua Dej Resistor Starters yog cov khoom siv tshiab tiam tshiab uas tau tsim los txhim kho cov yam ntxwv pib ntawm loj - thiab nruab nrab - loj winding asynchronous motors. Lub hauv paus ntsiab lus ntawm lawv yog tias tus nqi tsis kam ntawm cov kua resistor tau txuas nrog rau hauv series rau rotor Circuit Court yog txhim kho smoothly, thiaj li paub tias tsis muaj - cuam tshuam qhov pib.
Guangzhou Haoqing Mechanical Thiab Electrical Equipment Co., Ltd. Txais tos kom yuav siab - qib ua kua ua kua pib ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab tus nqi qis.
Liquid Resistance Starter
1. Cov lus piav qhia dav dav
- ZDQ series Tag Nrho Tsis Siv Neeg Ua Kua Dej Resistor Starters yog cov khoom siv tshiab tiam tshiab uas tau tsim los txhim kho cov yam ntxwv pib ntawm loj - thiab nruab nrab - loj winding asynchronous motors. Lub hauv paus ntsiab lus ntawm lawv yog tias tus nqi tsis kam ntawm cov kua resistor tau txuas nrog rau hauv series rau rotor Circuit Court yog txhim kho smoothly, thiaj li paub tias tsis muaj - cuam tshuam qhov pib. Vim tias muaj peev xwm loj thermal ntawm cov kua resistor, lawv lub sij hawm pib nyob rau hauv ib chav tsev lub sij hawm yog ntau tshaj li lwm yam pib li, xws li zaus rheostat. Cov yam ntxwv ntawm lawv yog zoo dua li ntawm zaus rhiab heev, roj immersed rheostat pib. Lawv yooj yim hauv kev saib xyuas thiab ua haujlwm nrog kev ua haujlwm siab. Cov khoom pib ntawm ZDQ series yog dav siv nyob rau hauv 100kw-6000kw winding motors rau hnyav pib pob grinders, cua tshuab, dov mills, dej twj tso kua mis thiab pob zeb tawg siv nyob rau hauv lub tsev cov ntaub ntawv thiab metallurgical thiab lwm yam industries.
2.Main Technical Parameters:
- Pib tam sim no: Iq Tsawg dua lossis sib npaug rau 1.3Ie
- Pib torque: Mq Tsawg dua lossis sib npaug rau Kuv
- Pib lub sij hawm: 5-10 zaug ua ke
2.1Main technical parameters ntawm starters nyob rau hauv txawv ntau thiab tsawg
|
Qauv |
Tsim nyog lub cev muaj zog (kW) |
Lub sijhawm pib (s) |
Kub nce ntawm cov kua resistor (degree) |
Resistance (Ω) ib theem |
|
ZDQ6-0.4 |
90~355 |
15 |
< 5 |
0.1-2 |
|
ZDQ6-0.6 |
380~570 |
15~25 |
< 5 |
0.2-3 |
|
ZDQ6-1 |
570~1250 |
15~25 |
< 8 |
0.4-3 |
|
ZDQ6-2 |
1400~2500 |
20~30 |
< 10 |
0.4-3 |
|
ZDQ6-3 |
2500~3000 |
30~50 |
< 10 |
0.4-3 |
|
ZDQ6-4 |
3000~6000 |
50~80 |
< 15 |
0.3-3 |
2.2 Ib puag ncig ua haujlwm ntawm tus pib
Qhov kub ntawm qhov nruab nrab yog -25℃rau +45℃thiab qhov siab siab tsis tshaj 2000 meters.
Tus txheeb ze humidity tsis ntau tshaj 90 feem pua. Tsis muaj kev phom sij tawg, cov khoom siv hluav taws xob thiab cov plua plav loj hauv nruab nrab.
Tsis muaj qhov pom tseeb cuam tshuam kev co hauv qhov chaw teeb tsa.
2.3 Hluav taws xob qhov chaw pib (tsis suav nrog stator sab hluav taws xob qhov chaw)
Plaub-hlau peb- theem system: AC 380V / 220V 50Hz 20A
3.External Saib thiab Installation Dimensions
Installation dimension:
|
Qauv |
Reference sab nraud qhov ntev (mm) |
Installation qhov ntev |
||||
|
A |
B |
C |
E |
F |
Φd |
|
|
ZDQ6-0.2 |
660 |
860 |
2000 |
360 |
740 |
12 |
|
ZDQ6-0.4, ZDQ6-0.4K |
800 |
860 |
2000 |
500 |
740 |
12 |
|
ZDQ6-0.6, ZDQ6-0.6K |
800 |
860 |
2000 |
500 |
740 |
12 |
|
ZDQ6-1 |
1000 |
960 |
2000 |
700 |
740 |
14 |
|
ZDQ6-2 |
1000 |
960 |
2000 |
900 |
740 |
14 |
|
ZDQ6-3 |
1400 |
1260 |
2000 |
1100 |
740 |
14 |
|
ZDQ6-4 |
1600 |
1260 |
2000 |
1100 |
740 |
14 |
4.Kev thauj mus los thiab Hoisting
4.1 Kev cuam tshuam yuav tsum raug zam thaum thauj thiab nqa khoom, kom tsis txhob ua rau cov khoom siv hluav taws xob ua kua hluav taws xob puas thiab xau cov kua.
4.2 Inclining rau kab ntsug yuav tsum tsawg dua 30℃thaum hoisting.
5. Kev Txhim Kho Kev Ua Haujlwm ntawm Starter
5.1 Nws tau pom zoo tias cov kua pib lub txee yuav tsum tau nruab rau ntawm lub hauv paus cement qhov twg tuaj yeem ntws.
5.2 Lub txee lub cev yuav tsum tau muab ntsia raws li ntsug li sai tau ntawm kab rov tav dav hlau.
5.3 Lub txee lub cev yuav tsum tau muab tso rau sab xis ntawm lub cable channel uas tau nruab nrog channel hlau puag raws li nws qhov ntev sab nraud
5.4 Lub cable ntawm rotor ntawm lub cev muaj zog txuas nrog lub phaj pib ntawm sab nraub qaum tom qab khiav los ntawm cov yeeb nkab.
6. Kev Kho Txoj Kev
6.1 Kev txiav txim siab ntawm qhov pib resistor
Resistance nqi ROntawm txhua theem ntawm cov resistor txuas nrog hauv series rau Circuit Court ntawm lub cev muaj zog rotor yuav tsum tau txiav txim siab raws li cov qauv hauv qab no:
qhov twg
U2e: qhib- Circuit Court voltage ntawm rotor
I2e: Rated tam sim no ntawm rotor
I1e: Rated tam sim no ntawm stator
I1: Ua haujlwm tam sim no ntawm stator
K: Tsis tu ncua (hauv thaj tsam ntawm 1.1 txog 1.3)
6.2 Kev npaj cov kua resistor
